Our 40 metre boom pump is a 2007 model, and is predominantly used for commercial pours.
Our staff hold valid white cards, and have worked on a variety of jobs ranging from house foundations and slabs, strip footings, walls, and more.
Recent jobs include:
Stage 1 of Newport Quays, at Port Adelaide
Tech port Australia, at Osbourne, and currently the Adelaide Desalination Plant.
|

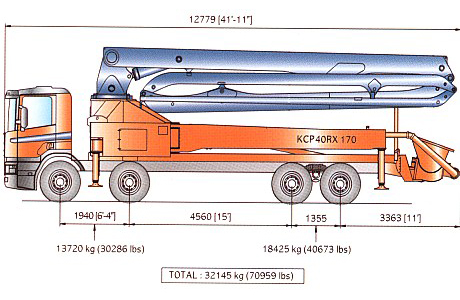

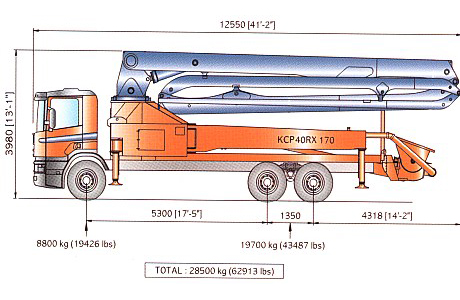

40 Metre Boom Pump Specifications |
|
|
Vertical reach |
40,0 m |
|
Horizontal reach |
35,7 m |
|
Maximum output |
170 m3/h |
|

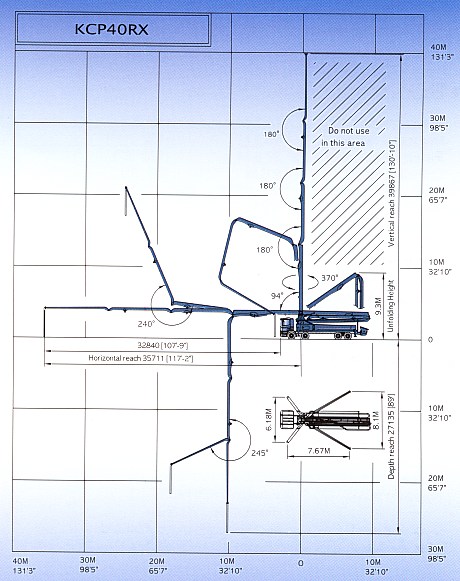

Boom specifications: |
|
|
Vertical reach |
40,0 m |
|
Horizontal reach |
35,7 m |
|
Reach from front of truck |
32,8 m |
|
Unfolding height |
9,3 m |
|
Section articulation |
90/180/240/245¡Æ |
|
Rotation |
370¡Æ |
|
Delivery boom |
125 mm |
|
End hose length |
4 m |
|
Outrigger spread-front |
6,18 m |
|
Outrigger spread-rear |
7,15 m |
|
Max. outrigger weight |
20.500 kg |
|
Pump specification: |
|
|
Maximum output |
170 ¬Þm3/h |
|
Concrete cylinder |
¨ª230 mm x ¨ª2100 mm |
|
Stroker per minute |
32 |
|
Concrete pressure |
72 bar |
|
Hopper capacity |
0,6 m3 |
|
S-tube |
¨ª200 mm x ¨ª180 mm |
|
Hydraulic pump |
Kawasaki K3V140DT |
|
|
Rexroth A11VO260 |
|
Max. aggregate size |
60 mm (2¨ö ") |
|
Water reservoir |
500 l |
|
Water pump with rust protection |
|
