Our 28 metre boom pump is a 2006 model, and can be used for residential or commercial pours.
Our staff hold valid white cards, and have worked on a variety of jobs ranging from house foundations and slabs, ot strip footings, walls, and more.
The 28 metre boom is a Z fold, allowing for great range of movement onsite.
Stage 1 of Newport Quays, at Port Adelaide
Techport Australia, at Osbourne
|
KCP28ZX120 - Concrete pump 4 sections |
|
|
Vertical reach |
27,8 m |
|
Horizontal reach |
24,0 m |
|
Maximum output |
105 m3/h |
|

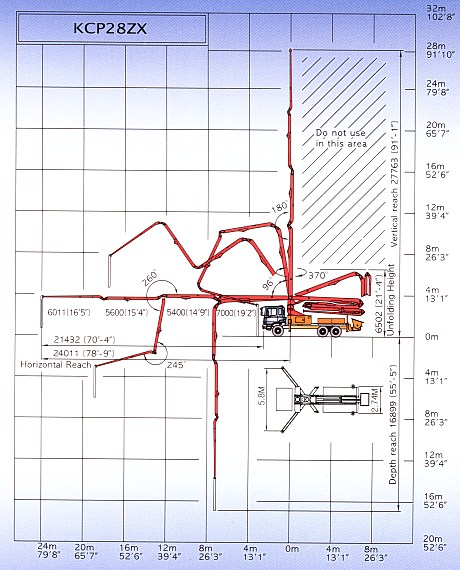

Boom specifications: |
|
|
Vertical reach |
27,8 m |
|
Horizontal reach |
24,0 m |
|
Reach from front of truck |
22 m |
|
Unfolding height |
6,5 m |
|
Section articulation |
96/180/260/245° |
|
Rotation |
370° |
|
Delivery boom |
125 mm |
|
End hose length |
3 m |
|
Outrigger spread-front |
5,8 m |
|
Outrigger spread-rear |
2,74 m |
|
Max. outrigger weight |
13.000 kg |
|
Pump specification: |
|
|
Maximum output |
105 мm3/h |
|
Concrete cylinder |
Ø230 mm x Ø1800 mm |
|
Stroker per minute |
23,5 |
|
Concrete pressure |
69 bar |
|
Hopper capacity |
0,6 m3 |
|
S-tube |
Ø200 mm x Ø180 mm |
|
Hydraulic pump |
Kawasaki K3V180S |
|
|
Rexroth A11VO190 |
|
Max. aggregate size |
60 mm (2½ ") |
|
Water reservoir |
500 l |
|
Water pump with rust protection |
|
